PiezoWalk® actuators are non-resonant type piezo motors and can provide very high resolution and high forces. PI currently offers two types: A smaller, faster one (NEXACT®)that is based on a monolithic piezo element and a larger type consisting of several individual piezo actuators (NEXLINE®). Both types generate motion through succession of coordinated clamp/ unclamp and expand/contract cycles. Each cycle can provide a steps from a few nanometers to a few microns of linear motion. With repetition rates of up to 100's of steps per second, continuous motion up to 10 mm/sec can be achieved.

These motors also provide a second, highly dynamic, analog operating mode with total travel of a few microns but picometer resolution. Another advantage of PiezoWalk motors is the autolocking feature. When at rest, they hold position with extreme stability, and no heat generation.





N-900 Nonmagnetic PiezoWalk-Motor Linear Actuator


  • Piezo-Walk Motor-Driven Linear Actuator
  • Works in High Magnetic Fields (MRI)
  • 70mm Motorized Positioning Range
  • Self-Aligning & Self Locking Design
  • Made from non-magnetic materials
  • 5N Force (1 lb)



PDF Brochure | Ask an Engineer

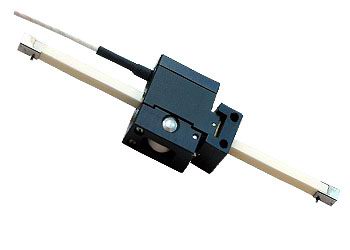

N-900 Nonmagnetic PiezoWalk-Motor Linear Actuator





N-900 Miniature Positioning Stage, Nonmagnetic, Vacuum Compatible

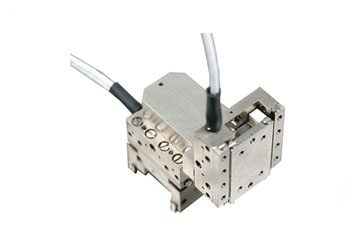

N-900 XYZ Nonmagnetic Linear Positioning Stage This sub-miniature, non-magnetic positioning stage is driven by patented Piezo-Walk® motors and is ideal for aligning samples in applications where magnetic actuators are not tolerable.
  • Constructed Exclusively of Non-Magnetic and Non-Magnetizable Parts
  • Sub-µm Resolution
  • X, XY, XYZ & Custom Designs
  • 10 mm Travel, 5 N Force
  • Self-Locking Piezo Motor, No Heat Generation at Rest
  • Non-Magnetic & Vacuum Compatible
  • Can Operate in Strong Magnetic Fields



PDF Datasheet | Ask a PI Engineer




N-216 High-Force PiezoWalk OEM Ceramic Linear Motor Actuator



  • Holding Force to 800 N (176 lbs)
  • Patented NEXLINE® Piezo Walk Motor design
  • For high-end Nanopositioning and Alignment Applications with Extreme Precision and Lifetime Requirements
  • 20 mm Positioning range
  • To 30 Picometer Resolution
  • Self Locking at Rest with High Holding Force
  • Non-Magnetic and Vacuum-Compatible Working Principle
  • Cleanroom Compatible

The N-216 linear actuators provides even higher forces than the N-111 version. It is designed for high-end nanopositioning and alignment applications with very high forces and extreme precision and lifetime requirements. The patented operating principle is based on coordinated motion of a number of highly preloaded linear and shear piezo elements acting on a ceramic runner. The net effect is the combination of piezo-class precision with travel ranges common to conventional linear motors.

PDF Brochure | Questions on this Product?

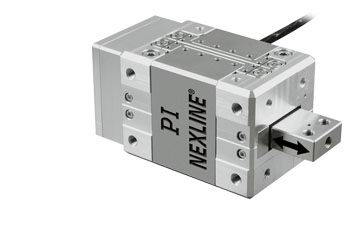

N-216 Linear Actuator





N-111 High-Force PiezoWalk OEM Ceramic Linear Motor Actuator


High-Force PiezoWalk OEM Ceramic Linear Motor Actuator
  • Up To 50 N Force Generation and 70 N Holding Force
  • Patented NEXLINE® Piezo Walk Motor design
  • For high-end Nanopositioning and Alignment Applications with Extreme Precision and Lifetime Requirements
  • Resolution to 25 Picometers
  • 10 mm Standard Positioning Range
  • Self Locking at Rest, No Heat Generation
  • Non-Magnetic and Vacuum-Compatible Working Principle
  • Cleanroom Compatible

These high-force actuators are designed for high-end nanopositioning and alignment applications with extreme precision and lifetime requirements. The patented operating principle is based on coordinated motion of a number of highly preloaded linear and shear piezo elements acting on a ceramic runner. The net effect is the combination of piezo-class precision with travel ranges common to conventional linear motors.

PDF Brochure | Questions on this Product?

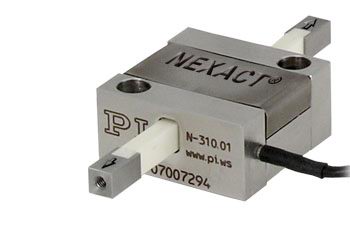

N-310 Miniaturized PiezoWalk-Motor Linear Drive for OEMs



  • Choice of Positioning ranges 10 mm to 125 mm
  • Very Compact Design (25x25x12mm), Smaller Versions for OEMs Feasible
  • Resolution to 30 Picometers in Analog Mode
  • Self-Locking with High Holding Force and Excellent Position Stability
  • 10 N (2.2 lbs) Push/Pull Force
  • Non-Magnetic and Vacuum-Compatible Versions

This miniaturized linear motor drive is based on the patented NEXACT® piezowalk motor. Open-loop and closed-loop mode operation is possible. A variety of NEXACT® controllers facilitates the integration into micro- or nanopositioning applications.

PDF Brochure | Questions on this Product?
Linear Actuator





N-381 High-Precision Piezo-Motor-Driven Linear Actuator and Manipulator

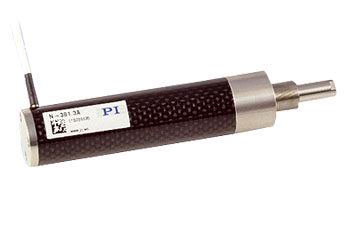

N-381 Linear Actuator, Manipulator, Piezo Stapper
  • Long-Life Piezo Stepping Drive, Ideal for Micro- and Nano-Manipulation
  • Positioning range 30 mm
  • Self Locking Design with Heat Generation at Rest
  • 20 nm Optical Linear Encoder Option for Highest Precision
  • Very High Acceleration, for Biotech Applications such as Cell Penetration
  • Two Operating Modes: Continuous Stepping Mode and Continuously Variable, High-Dynamics Analog Mode for Picometer Resolution
  • Up to 10 N Force Generation
  • Smooth Motion, no Closed-Loop Jitter
  • Vacuum-Compatible and Non-Magnetic Versions

The N-381 piezo-motor driven linear actuator is an ideal drive system for micro & nano manipulators, biotechnology and nanotechnology applications. It combines rapid acceleration with high precision, velocity to 10 mm/sec and push/pull force to 10 N (2.2 lbs). The PiezoWalk® drive principle provides a step mode and a highly dynamic "analog" piezo mode that can output continuous waveforms with amplitudes up to 7 microns and frequencies to 100's of Hz. The "analog mode" can also be used for rapid acceleration such as required in cell penetration applications, or smooth motion for dynamic laser tuning or even for active damping of oscillations.

PDF Brochure | Questions on this Product?





Non-Magnetic 6-Axis Positioners


Non-Magnetic Hexapod
For more information on non-magnetic 6-Axis positioners, click here
